產品中心 > 通訊測量儀器 > 天饋線分析儀 > 手持式天饋線分析儀ZPH
  • 手持式天饋線分析儀ZPH

  • 產品編號:15382

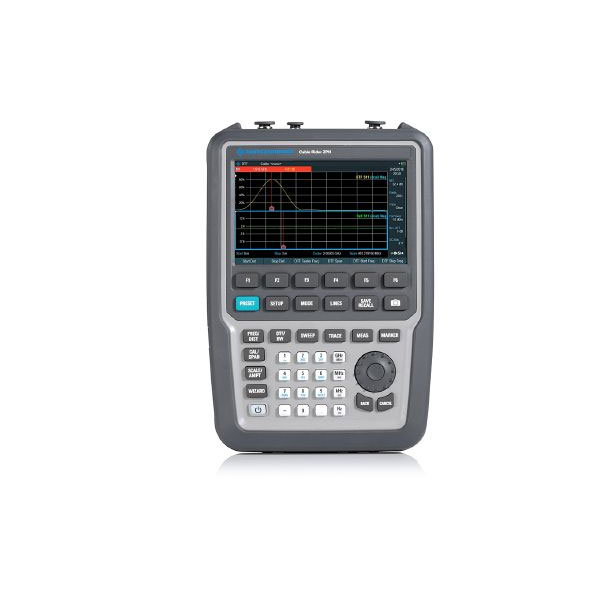

  • 產品名稱:手持式天饋線分析儀
  • 產品型號:ZPH
  • 訂貨編號:
  • 市 場 價:¥67400.00
  • 促 銷 價:
  • 狀    態:
  • 產    地:德國
  • 簡要參數:
    手持式天饋線分析儀,2MHz~3GHz;濾波器和天線隔離測量的動態范圍典型值達100dB;內置有源器件如放大器使用的直流電壓源(偏置);功率計選件;將測量結果保存在SD內存卡或USB存儲盤上;用戶可配置的測試序列(向導);內置向導可幫助用戶快速順暢地執行擴展測試序列。利用R&S®InstrumentView軟件,只需幾個簡單的操作步驟即可生成測試報告。
  • 人    氣:1307

瀏覽記錄

產品介紹

主要特點

Ø  頻率高達 3 GHz 或 4 GHz,可通過激活碼升級

Ø  單端口型號功能:DTF、回波損耗、VSWR 和電纜損耗測量

Ø  雙端口型號附加功能:S21 測量、頻譜和干擾分析、AM/FM/ASK/FSK 解調

Ø  非常適合現場使用:電池續航時間長達 9 小時,重 2.5 kg (5.5 lb),背光鍵盤,啟動時間短,防反光顯示屏,體型小巧,外殼堅固 (IP51)

R&S®Cable Rider ZPH 具有現場安裝和維護天線系統所需的所有基本測量功能。其獨特的功能可確保快速高效的電纜和天線測量以及頻譜分析。有兩種不同的 R&S®ZPH 型號可滿足不同的需求,一種是純單端口電纜和天線分析儀,另一種是具有附加頻譜分析和跟蹤發生器功能的雙端口型號。

Non-traceable specifications with limits (n. trc.)

Represent product performance that is specified and tested as described under “Specifications with limits” above. However, product performance in this case cannot be warranted due to the lack of measuring equipment traceable to national metrology standards. In this case, measurements are referenced to standards used in the Rohde & Schwarz laboratories.

Specifications without limits

Represent warranted product performance for the specified parameter. These specifications are not specially marked and represent values with no or negligible deviations from the given value (e.g. dimensions or resolution of a setting parameter). Compliance is ensured by design.

Typical data (typ.)

Characterizes product performance by means of representative information for the given parameter. When marked with <, > or as a range, it represents the performance met by approximately 80 % of the instruments at production time. Otherwise, it represents the mean value.

Nominal values (nom.)

Characterize product performance by means of a representative value for the given parameter (e.g. nominal impedance). In contrast to typical data, a statistical evaluation does not take place and the parameter is not tested during production.

Measured values (meas.)

Characterize expected product performance by means of measurement results gained from individual samples.

Uncertainties

Represent limits of measurement uncertainty for a given measurand. Uncertainty is defined with a coverage factor of 2 and has been calculated in line with the rules of the Guide to the Expression of Uncertainty in Measurement (GUM), taking into account environmental conditions, aging, wear and tear.

Device settings and GUI parameters are designated with the format “parameter: value”.

Non-traceable specifications with limits, typical data as well as nominal and measured values are not warranted by Rohde & Schwarz.

In line with the 3GPP/3GPP2 standard, chip rates are specified in million chips per second (Mcps), whereas bit rates and symbol rates are specified in billion bits per second (Gbps), million bits per second (Mbps), thousand bits per second (kbps), million symbols per second (Msps) or thousand symbols per second (ksps), and sample rates are specified in million samples per second (Msample/s).

Gbps, Mcps, Mbps, Msps, kbps, ksps and Msample/s are not SI units.


Specifications

Frequency



Frequency range


2 MHz to 3 GHz

with   R&S&reg;ZPH-B4 option installed

2 MHz to 4 GHz

Frequency   resolution


1 Hz



Reference   frequency, internal

Total reference   accuracy


±(time since last   adjustment · aging rate) +

temperature drift + calibration accuracy

Aging per year


±1 ·   10–6

Temperature drift

0 °C to +30 °C

±1 ·   10–6

+30 °C to +50 °C

±3 ·   10–6

Achievable initial calibration accuracy


±5 ·   10–7

Measurements



Individual


reflection   (S11)


one-port cable loss


distance-to-fault

model .12

transmission   (S21)

Measurement wizard

Guides   the user through a sequence of individual measurements. Uses the R&S&reg;Instrument   View PC software to configure the measurement sequence including hints   displayed on the screen. R&S&reg;Instrument View is also used to   combine the measurement

results into user-configurable reports.



Measurement   setup

Port output power

model .02

–10 dBm (nom.)

model .12

–3 dBm to –30 dBm step 1 dB (nom.)

Data points

selectable

101 to 2501

Measurement   bandwidth

reflection   measurement (S11)

10   kHz

transmission measurement (S21)

10 Hz, 100 Hz, 1   kHz, 10 kHz, 100 kHz,

1 MHz

Trace modes


clear/write, average



Reflection measurement S11

Result formats


magnitude,   SWR, magnitude and distance-to-fault, SWR and distance-to-

fault, smith chart, phase

Magnitude

Range


1/2/3/5/10/20/30/50/100/120/130/150   dB, linear 100 %

Resolution


0.1   dB

SWR

Range

selectable

1 to 1.1/1.5/2/3/6/11/21/71

Measurement speed


0.3 ms per point

Corrected   directivity with R&S&reg;ZN-Z103

2 MHz ≤ f ≤ 4 GHz

> 42 dB (nom.)

Corrected test port   match

with   R&S&reg;ZN-Z103

2 MHz ≤ f ≤ 4 GHz

> 36 dB (nom.)

Measurement   uncertainty

with   R&S&reg;ZN-Z103


see figure   Uncertainty of reflection

measurement



One-port   cable loss measurement

Result format


magnitude

Range

selectable

1/2/5/10/20/50/100 dB

Resolution


0.1 dB


Distance-to-fault   analysis

Result formats


return loss, SWR,   split screen DTF and

SWR, split screen DTF and return loss

Return loss

Range


1/2/3/5/10/20/30/50/100/120/130/150   dB,

linear 100 %

Resolution


0.01 dB

SWR

Range

selectable

1 to 1.1/1.5/2/3/6/11/21/71

Fault resolution


(1.5   · 108 · velocity factor / span) m

Maximum cable length

depending on cable loss

1500 m (nom.)



Immunity   to interference

Maximum permissible   spurious signal

measurement   = reflection (S11) / one-port cable   loss/distance-to-fault analysis


+17 dBm (nom.)




Accuracy of reflection   measurements

2 MHz to 4 GHz

0 dB to –15 dB

< 0.3 dB or < 2.1°

–15 dB to –25 dB

< 1.0 dB or < 7.5°

–25 dB to –35 dB

< 3.1 dB or < 26°



Dynamic   of transmission measurements (model .12 only)

RF   Attenuation = 5 dB, tracking generator level = –3 dBm, RBW = 10 kHz

100 kHz ≤ f < 20 MHz

> 60 dB (nom.)

20 MHz ≤ f < 1.5 GHz

> 90 dB (nom.)

1.5 GHz ≤ f < 2.5 GHz

> 70 dB (nom.)

2.5 GHz ≤ f < 4 GHz

> 60 dB (nom.)






Spectrum analyzer (R&S&reg;ZPH-K1 option, only model .12)



Frequency range


5 kHz to 3 GHz

with   R&S&reg;ZPH-B4 option installed

5 kHz to 4 GHz

Frequency   resolution


1 Hz



Reference   frequency, internal

Aging per year


1 ·   10–6

Temperature drift

0 °C to +50 °C

1 ·   10–6

Achievable initial   calibration accuracy


5 ·   10–7

Total reference   uncertainty


(time since last adjustment · aging rate) +   temperature drift + calibration accuracy



Frequency   readout

Marker resolution


1 Hz

Uncertainty


±(marker   frequency · reference uncertainty + 10 % · resolution bandwidth

+ &frac12; (span / (sweep points – 1) + 1 Hz)

Number of sweep (trace)   points


711

Marker tuning frequency step size


span/710

Frequency counter   resolution


0.1 Hz

Count uncertainty

SNR > 25 dB

±(frequency ·   reference uncertainty +

&frac12; (last digit))

Frequency span


0 Hz, 10 Hz to 3 GHz

with   R&S&reg;ZPH-B4 option installed

0 Hz, 10 Hz to 4 GHz

Span uncertainty


1 % (nom.)



Spectral   purity SSB phase noise


f = 500 MHz

Carrier offset

30 kHz

< –88 dBc (1 Hz), –95 dBc (1 Hz) (typ.)

100 kHz

< –98 dBc (1 Hz), –105   dBc (1 Hz) (typ.)

1 MHz

< –118 dBc (1 Hz), –125 dBc (1 Hz) (typ.)

Sweep time



Sweep time

span = 0 Hz

1 ms to 1000 s

10 Hz ≤ span ≤ 600 MHz

20 ms to 1000 s

span > 600 MHz

20 ms · span / 1600 MHz to 1000 s

Uncertainty

span = 0 Hz

1 % (nom.)

span ≥ 10 Hz

3 % (nom.)

Bandwidths



Resolution   bandwidths

Range

–3 dB bandwidths

1 Hz to 3 MHz in 1/3 sequence

Bandwidth accuracy

1 Hz ≤ RBW ≤ 300 kHz

< 5 % (nom.)

300 kHz < RBW ≤ 1 MHz

< 10 % (nom.)

Selectivity   60 dB:3 dB


<   5 (nom.), Gaussian type filters

Video filters

Range

–3 dB bandwidths

1 Hz to 3 MHz in 1/3 sequence






Level



Display range


displayed noise floor to +30 dBm

Maximum rated input   level

DC voltage


50 V

CW RF power


33 dBm (= 2 W)

Peak RF power

duration < 3 s

36 dBm (= 4 W)

Maximum pulse voltage


150 V

Maximum pulse energy

pulse width 10 &micro;s

10 mWs

Intermodulation

Third-order   intercept (TOI)

intermodulation-free   dynamic range, signal level –20 dBm (both),

RF attenuation = 0 dB, RF preamplifier = off

f = 1 GHz

+7 dBm (meas.)

f = 2.4 GHz

+10 dBm (meas.)

Second-harmonic   intercept (SHI)

RF attenuation = 0 dB, RF   preamplifier = off, signal level = –40 dBm

fin = 20 MHz to 1.5 GHz

–60 dBc (nom.)

fin = 1.5 GHz to 2 GHz

–80 dBc (nom.)

Displayed average noise level

0 dB   RF attenuation, termination 50 Ω, RBW = 1 kHz, VBW = 10 Hz, sample detector,   logarithmic scaling, normalized to 1 Hz

preamplifier = off

1 MHz to 10 MHz

< –130 dBm, –135 dBm (typ.)

10 MHz to 1 GHz

< –142 dBm, –146 dBm   (typ.)

1 GHz to 4 GHz

< –140 dBm, –144 dBm   (typ.)

preamplifier = on

1 MHz to 10 MHz

< –150 dBm, –160 dBm   (typ.)

10 MHz to 3 GHz

< –158 dBm, –163 dBm (typ.)

3 GHz to 4 GHz

< –156 dBm, –161 dBm   (typ.)



Immunity   to interference, nominal values

Image frequencies

fin – 2 · 30.15 MHz

< –70 dBc (nom.)

fin – 2 · 830.15 MHz

< –70 dBc (nom.)

f   < 3 GHz, fin – 2 · 830.15 MHz

< –70 dBc (nom.)

f   < 3 GHz, fin – 2 · 4042.65 MHz

–60 dBc (nom.)

f   ≥ 3 GHz, fin + 2 · 830.15 MHz

–60 dBc (nom.)

Intermediate frequencies

30.15 MHz, 830.15 MHz,   4042.65 MHz

< –60 dBc (nom.)

Other interfering signals,

signal level – RF   attenuation < –30 dBm

f ≤ 3 GHz, spurious at fin – 2021.325 MHz

< –60 dBc (nom.)

Other interfering signals,   related to local

oscillators

∆f ≥ 300 kHz

< –60 dBc (nom.)

f = receive frequency

Residual spurious response

input matched with   50 Ω,

without input signal, RBW ≤ 30 kHz, f ≥ 3 MHz, RF   attenuation = 0 dB

< –90 dBm (nom.)

Level   display

Logarithmic level   axis


1/2/3/5/10/20/30/50/100/120/150 dB, 10 divisions

Linear   level axis


0 %   to 100 %, 10 divisions

Number of traces


2

Trace detectors


max.   peak, min. peak, auto peak, sample, RMS

Trace functions


clear/write,   max. hold, min. hold, average, view

Setting range of reference level


–130 dBm to +30 dBm

Units of level axis


dBm, dBmV, dB&micro;V, V, W

Level measurement uncertainty

Absolute level uncertainty at 100 MHz

+20 °C to +30 °C

< 0.3 dB

Frequency response (+20 °C   to +30 °C)

5 kHz ≤ f < 10 MHz

< 1.5 dB (nom.)

10 MHz ≤ f ≤ 4 GHz

< 1 dB

Attenuator uncertainty


< 0.3 dB

Uncertainty of reference   level setting


< 0.1 dB (nom.)

Display nonlinearity

SNR > 16 dB, 0   dB to –50 dB,

logarithmic   level display

< 0.3 dB

Bandwidth switching uncertainty

reference: RBW = 10 kHz

< 0.1 dB (nom.)

Total measurement   uncertainty

95 % confidence   level, +20 °C to +30 °C,

SNR   > 16 dB, 0 dB to –50 dB below reference level, RF attenuation auto

10 MHz ≤ f ≤ 4 GHz

< 1.25 dB, 0.5 dB (typ.)




Trigger functions



Trigger

Trigger source


free run, video, external

External trigger   level threshold

low → high transition

2.4 V

high → low transition

0.7 V

maximum

3.0 V

Gated trigger   (model .12 only)

Gate delay


1 &micro;s to 100 s,

resolution   min. 1 &micro;s (or 1 % of delay)

Gate length


1 &micro;s to 100 s,

resolution min. 1 &micro;s (or 1 % of gate length)
