GDS-3354A | 通道 | 4 + Ext |
| 帶寬 | DC ~ 350MHz (–3dB) @50Ω/1MΩ input impedance |
| 上升時間 | 1ns (calculated) |
| 帶寬限制 | 20MHz/100MHz/200MHz* |
*帶寬限制公差為±10%。 |
垂直靈敏度 | 分辨率 | 8 bits (Max.12 bits with Hi Res) For 1MΩ input impedance: 1mV*~10V/div For 50Ω input impedance: 1mV*~1V/div |
輸入耦合 | AC, DC, GND |
輸入阻抗 | 1MΩ// 22pF approx. |
DC增益精度 | 1mV: ±5% full scale
≥2mV: ±3% full scale |
極性 | Normal & Invert |
最大輸入電壓 | For 1MΩ input impedance: 300Vrms, CAT II For 50Ω input impedance: 5Vrms max. |
偏移位置范圍 | For 1MΩ input impedance: 1mV/div ~ 20mV/div :±1V; 50mV/div ~ 500mV/div: ±10V 1V/div ~ 5V/div : ±100V; 10V/div : ±1000V For 50Ω input impedance: 1mV/div ~ 50mV/div:±1V; 100mV/div ~ 1V/div : ±10V |
波形信號處理 | +, -, ×, ÷, FFT, User Defined Expression FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning or Blackman. |
觸發 | Source | CH1, CH2, Line, EXT |
觸發模式 | Auto (supports Roll Mode for 100ms/div and slower), Normal, Single |
觸發類型 | Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Timeout, Alternate, Event-Delay(1~65535 events), Time-Delay(Duration, 4ns~10s), Bus (UART, I2C, SPI, CAN, LIN) |
Holdoff 范圍 | 4ns to 10s |
耦合 | AC, DC, LF rej., HF rej., Noise rej. |
靈敏度 | 1div |
| 外部觸發 | Range | ±20V |
靈敏度 | DC ~ 100MHz Approx. 100mV
100MHz ~ 350MHz Approx. 150mV |
輸入阻抗 | 1MΩ±3%~22pF |
*:在1mV/div和2mV/div下，帶寬限制為20MHz。 |
水平 | 時基范圍 | 1ns/div ~ 1000s/div (1-2-5 increments)
ROLL: 100ms/div ~ 1000s/div |
預觸發 | 10 div maximum |
后觸發 | 10,000,000 div maximum. |
時基精度 | ±5 ppm, about ±2ppm increase in error per year |
信號采集 | 實時采樣率 | 5GSa/s one channel; 2.5GSa/s dual channels |
記錄長度 | Max. 200Mpts /CH |
采集模式 | Normal, Average, High Resolution, Peak Detect, Single |
| 峰值檢測 | 400ps (typical) |
| 平均 | Selectable from 2 to 256 |
| 分段數 | 1 to 490,000 maximum |
X-Y 模式 | X-Axis 輸入 | Channel 1 |
Y-Axis 輸入 | Channel 2 |
相位偏移 | ±3° at 100kHz |
| 光標和測量 | 光標 | Amplitude, Time, Gating available; Unit: Seconds(s), Hz (1/s), Phase (degree), Ratio (%). |
自動測量 | 38 sets with indicator: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, %Flicker, Flicker Idx ,FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase. |
光標測量 | Voltage difference between cursors(∆V) Time difference between cursors(∆T) |
自動計數器 | 6 digits, range from 2Hz minimum to the rated bandwidth |
控制面板功能 | Autoset | Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with “Undo Autoset”, “Fit Screen”/ “AC Priority” mode, and “Fine Scale” functions. |
保存設置 | 20 sets |
保存波形 | 20 sets |
| 保存參考波形 | 4 sets |
電源測量 (選配) | Power Quality, Harmonics, Ripple, In-rush current, Switching Loss, Modulation, SOA, Transient, Efficiency, B-H curve, Control Loop Response, PSRR, Turn On/Off |
AWG | 一般 |
|
通道 | 2 |
采樣率 | 200MSa/s |
垂直分辨率 | 14 bits |
最大頻率 | 25 MHz |
波形 | Sine, Square, Pulse, Ramp, DC, Noise Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac |
輸出范圍 | 20 mVpp to 5 Vpp, HighZ; 10 mVpp to 2.5 Vpp, 50Ω |
輸出分辨率 | 1mV |
輸出精度 | 2% (1 kHz) |
偏移范圍 | ±2.5 V, HighZ; ±1.25 V, 50 Ω |
偏移分辨率 | 1mV |
Sine |
|
頻率范圍 | 100 mHz to 25 MHz |
平坦度
(relative to 1 kHz) | ±0.5 dB < 15MHz; ±1dB 15MHz~25MHz |
諧波失真 | -40 dBc |
雜散（非諧波） | -40 dBc |
總諧波失真 | 1% |
S/N Ratio | 40 dB |
方波/脈沖波 |
|
頻率范圍 | Square: 100 mHz to 15 MHz |
上升/下降時間 | < 15ns |
過沖 | < 3 % |
占空比 | Square: 50% Pulse: 0.4% to 99.6% |
最小脈沖寬度 | 30ns |
抖動 | 500 ps |
斜坡 |
|
頻率范圍 | 100 mHz to 1MHz |
線性度 | 1% |
對稱性 | 0 to 100% |
頻譜分析儀 | 頻率范圍 | DC~2.5GHz Max, dual channel with spectrogram (based on Advanced FFT). Notice: Frequency which exceeds analog front end bandwidth is uncalibrated |
Span | 1kHz~2.5GHz (Max.) |
分辨率帶寬 | 1Hz~2.5MHz (Max.) |
參考電平 | -80dBm to +40dBm in steps of 5dBm |
垂直單位 | dBV RMS; Linear RMS; dBm |
垂直位置 | -12divs to +12divs |
垂直比例 | 1dB/div to 20dB/div in a 1-2-5 Sequence |
顯示的平均噪聲級 | 1V/div ß -40dBm, Avg :16 100mV/div ß -60dBm, Avg :16 10mV/div ß -80dBm, Avg :16 |
雜散響應 | 2nd harmonic distortion < 35dBc 3rd harmonic distortion < 40dBc |
頻域跟蹤類型 | Normal; Max Hold; Min Hold; Average (2 ~ 256) |
檢測方法 | Sample; +Peak; -Peak; Average |
FFT 窗 | FFT Factor:
Hanning 1.44
Rectangular 0.89
Hamming 1.30
Blackman 1.68 |
邏輯分析儀(選配) | 采樣率 | 1GSa/s |
帶寬 | 200MHz |
記錄長度 | Per Channel 10M points (max) |
輸入通道 | 16 Digital (D15 - D0) |
觸發類型 | Edge, Pattern, Pulse Width, Serial bus (I2C, SPI, UART, CAN, LIN), Parallel Bus |
臨界值分組 | Settable thresholds for: D0-D3, D4-D7, D8-11, D12-15 |
臨界值選擇 | TTL, CMOS(5V,3.3V,2.5V), ECL, PECL,0V ,User Defined |
用戶定義的臨界值范圍 | ±5V |
最大輸入電壓 | ±40 V |
最小驅動電壓 | ±250 mV |
垂直分辨率 | 1 bit |
Frequency Response Analyzer | 頻率范圍 | 20Hz to 25MHz |
輸入與輸出源 | Channel 1 ~ 2 |
測試點數量 | 10, 15, 30, 45, 90 points per decade selectable for logarithm scale; 2 ~ 1000 points selectable for linear scale |
動態范圍 | > 80dB (typical) |
測試振幅 | 10mVpp to 2.5Vpp into 50Ω, 20mVpp to 5Vpp into High-Z, Fixed test amplitude or custom amplitude for each decade. |
測試結果 | Logarithmic or linear overlaid gain and phase plot, may also overlay with reference plots for cross comparison. Test results saved in csv format for offline analysis. |
手動測量 | Tracking gain and phase markers |
繪圖尺度 | Auto-scaled during test |
顯示 | TFT LCD 類型 | 10.2" TFT LCD WVGA color display |
顯示分辨率 | 800 horizontal × 480 vertical pixels (WVGA) |
內插方式 | Sin(x)/x |
波形顯示 | Dots, vectors, variable persistence (16ms~4s), infinite persistence, gray or color waveforms. |
波形更新率 | 200,000 waveforms per second, maximum |
顯示格線 | 8 x 10 divisions |
顯示模式 | YT, XY |

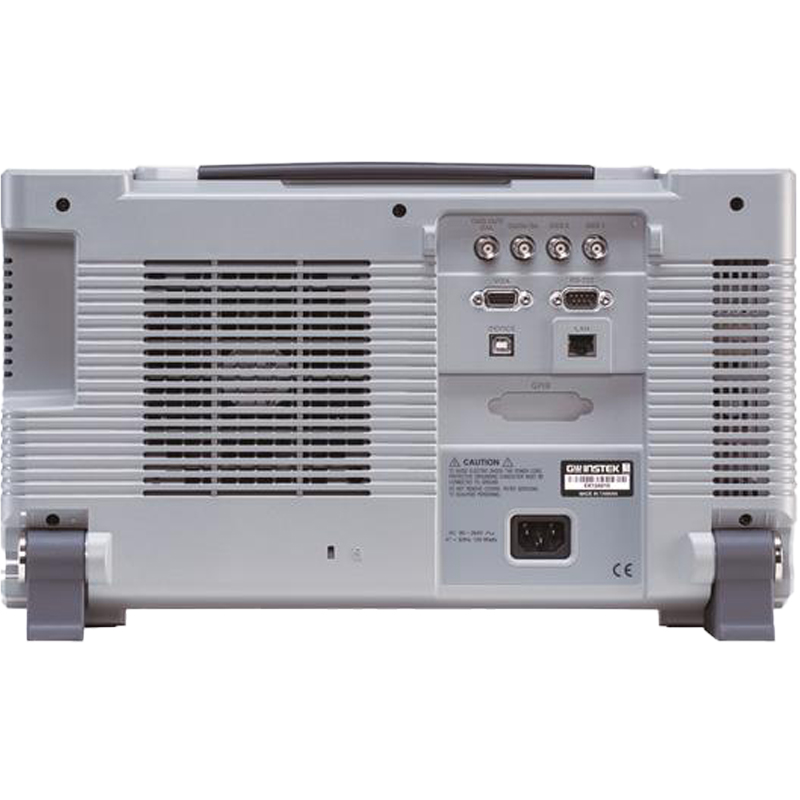

| 接口 | USB Port | USB 2.0 High-speed host port X1, USB High-speed 2.0 device port X1 |
以太網 (LAN) | RJ-45 connector X1, 10/100Mbps with HP Auto-MDIX |
Go-NoGo BNC | 5V Max/10mA open collector output X1 |
| Power Supply Receptacles | ±12V / 600mA for current probe use. Two sets of power supply receptacles for 2CH models; |
| RS232C | DB-9 male connector X1 |
| VGA 影像輸出 | DB-15 female connector X1, monitor output for display on VGA monitor |
| 選配的 GPIB 模組 | Fully programmable with IEEE488-2 compliance |
| Kensington 安全鎖插槽 | Rear-panel security slot connects to standard Kensington-style lock. |
其他 | 多國語言菜單 | Available |
操作環境 | Temperature: 0°C to 50°C. Relative Humidity ≤ 80% at 40°C or below;
≤ 45% at 41°C ~ 50°C. |
屏幕幫助 | Available |
時間功能 | Time and Date, Provide the Date/Time for saved data |
內建Flash 存儲空間 | 800M bytes Single-Level Cell flash memory |
內建APP | Go/NoGo, DVM, DataLog, Digital Filter, Frequency Response Analyzer, Mask, Mount Remote Disk, Demo |
| 用戶自定義按鍵 | User can select one of the several different preset functions as shortcut key. |
| 額定電壓范圍與功耗 | AC 100V ~ 240V, 50Hz ~ 60Hz, auto selection. power consumption:100W |
| 重量 | Approx. 4.6kg |
| 尺寸 | 420mm(W)X 253mm(H)X 113.8mm(D) |
