射頻/頻譜分析儀教學系統GRF系列
產品編號：07692
產品名稱：射頻/頻譜分析儀教學系統
產品型號：GRF系列
訂貨編號：
市場 價：
促銷價：
狀態：
產 地：固緯電子
簡要參數：

射頻/頻譜分析儀教學系統（射頻通訊實驗?zāi)K）。
人氣：2718

相關推送

瀏覽記錄

射頻/頻譜分析儀教學系統GRF系列

產品介紹

產品配件

Designed for wireless frequency range applications
Includes a 880MHz Digital PLL and 2.4GHz microstrip line filter circuits
Training for the Voice Communication System
Demonstrates the applications and measurements for using spectrum analyzers in communication instruments
Instructional theory and hands-on experiments for each chapter covering topics in RF systems
Designed for the application of the RF Transmitter and Receiver systems
Specific RF circuit characteristics & PCB Layout on each module
Training system covering 22 modules, and over 50 experiments

Training Contents
Sections	Theory	Experiment	Related Applications
The Fundamentals	Impedance matching network: L-type, π-type, T-type Smith chart: theory and practical examples	Theory explaining	RF Component Test
Antenna	Antenna parameter, antenna structure, antenna type	Frequency response	Antenna Design
Attenuator	Attenuator parameter, attenuator type, attenuator design	Attenuation characteristics	When the Signal is Too Big
Low Noise Amplifier	LNA parameter, 1dB compression point, LNA structure	Input and output return loss, amplifier gain, 1dB compression point	Small Signal Enlarged
Preamplifier	Preamplifier type, preamplifier structure	Input and output return loss, amplifier gain, 1dB compression point	Small Signal Enlarged
Power Amplifier	Power amplifier frequency characteristics, bias circuit, power amplifier parameter, power amplifier structure	Gain flatness, 1dB compression point, fundamentals to harmonics ratio	Power Enlarge
Filter	Filter parameter, filter structure: Butterworth, Chebyshev	Input/output return loss, insertion loss	EMI filter Design
Mixer	Mixer structure, mixer parameter, mixer type	Conversion gain, 1dB compression point, isolation	TV Tuner
Phase Locked Loop	PLL structure, frequency synthesizer, PLL controller, loop filter, design a PLL	Frequency response/modulation	Signal Generator
Audio Processor	Audio compression/decompression circuit	Pre-emphasis, compression characteristics, expander and de-emphasis, decompression characteristics	Wireless Microphone
Modulation	Design and implement a modulation circuit	Frequency modulation	Remote Controller
Demodulation	Design and implement an FM intermediate frequency demodulation circuit	IF modulation, RSSI output	Broadcasting
Transmitter	Transmitter parameter, transmitter structure	Transmission spectrum	Radio Set
Receiver	Receiver parameter, receiver structure	Receiving signal spectrum, demodulation waveform	Radio Set
Voice Demo	Combine with transmitter & receiver circuits	Voice communication system	VoIP
Microstrip Line Filter	Transmission line basics, stepped-impedance LPF, coupled line BPF, optimized HPF	Insertion loss	RFID
POWER SOURCE
AC 110V or 220V, 50/60Hz
DIMENSIONS & WEIGHT
GRF-3300S	428(W) x 90(H) x 303(D)mm for Transmitter & Receiver, Approx. 8.4kg
GRF-3300K	560(W) x 170(H) x 530(D)mm, Approx. 7kg

Ordering Information

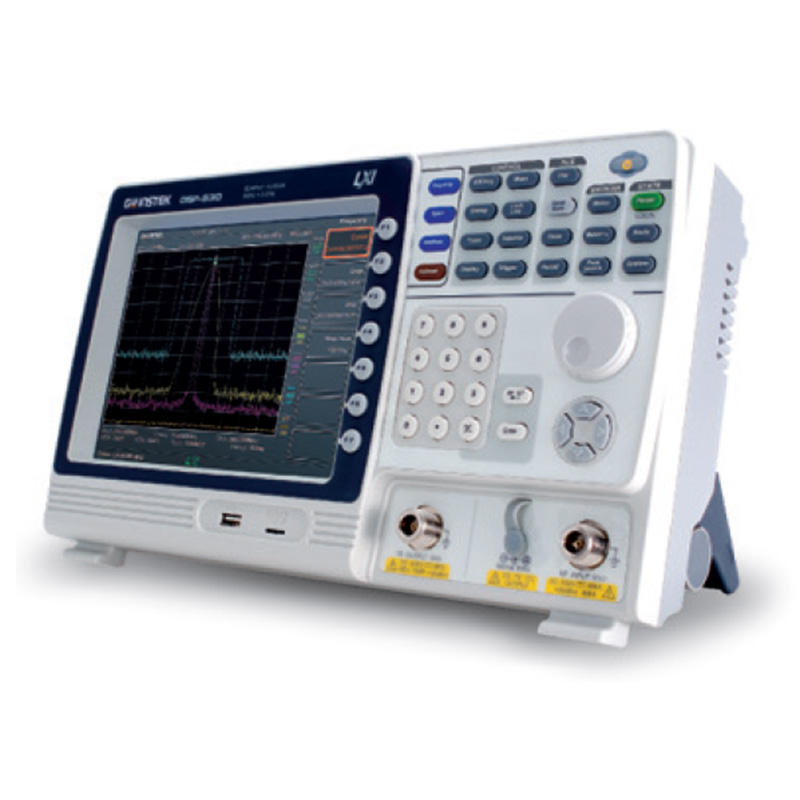

GRF-3300S Package	Including Spectrum Analyzer GSP-830 + Tracking Generator(TG), RF Training System GRF-3300S
GRF-3300K Package	Including Spectrum Analyzer GSP-830 + Tracking Generator(TG), RF Training Kit Sets GRF-3300Kning Kit Sets, 22 modules (12 for receiver and 10 for transmitter systems)
*GRF-3300S()**	RF Training System, Two Systems (Transmitter and Receiver)
*GRF-3300K()**	RF Training Kit Sets, 22 Modules (12 for Receiver and 10 for Transmitter systems)
(*)All GRF-3300S/K experiments are based upon GSP-830, we can't guarantee the result almost has its similarity by using other spectrum analyzers of their kinds.

序號	產品名稱	型號	主要參數	價格
1	射頻通訊實驗?zāi)K	GRF-2110	射頻通訊實驗?zāi)K(含GSP-810+TG)。	¥64000.00
2	射頻通訊實驗?zāi)K	GRF-2727	射頻通訊實驗?zāi)K(含GSP-827+TG)。	¥105000.00
3	射頻通訊實驗?zāi)K	GRF-2100	射頻通訊實驗?zāi)K(8組模塊不含GSP-810+TG)。	¥40000.00
4	射頻通訊實驗?zāi)K	GRF-2700	射頻通訊實驗?zāi)K(10組模塊不含GSP-827+TG)。	¥50000.00
5	射頻實驗系統	GRF-3300S	射頻實驗系統。	¥14000.00
6	射頻實驗?zāi)＝M	GRF-3300K	射頻實驗?zāi)＝M（散件已焊接）微帶線模塊*2。	¥15000.00
7	射頻實驗?zāi)＝M	GRF-3300B	射頻實驗?zāi)＝M（散件）微帶線模塊*2。	¥12000.00
8	射頻試驗系統	GRF-3100S	射頻試驗系統（系統含發射端及接收端）。	¥13000.00
9	射頻實驗?zāi)＝M	GRF-3100K	射頻實驗?zāi)＝M（散件已焊接)。	¥14000.00
10	射頻實驗?zāi)＝M	GRF-3100B	射頻實驗?zāi)＝M（散件）。	¥11000.00
11	射頻實驗?zāi)＝M	GRF-3110	射頻實驗?zāi)＝M（含GSP-810+TG+RLB）。	¥40000.00
12	射頻實驗?zāi)＝M	GRF-3127	射頻實驗?zāi)＝M（含GSP-827+TG+RLB）。	¥80000.00
13	射頻試驗?zāi)＝M	GRF-1300	射頻試驗?zāi)＝M。	¥3500.00
14	射頻通信系統	GRF-1300A	射頻通信系統（增加混頻器，2.4G帶通濾波器）。	¥4600.00
